1. Lithium battery quality assurance 5 years or 10000h
2. After 4000 cycles of use, the capacity can keep more than 75%
3. The core components such as gearbox and drive axle have low failure rate and reliable quality;
The hoisting system is equipped with a buffer function as standard, the goods fall smoothly and the operation is safer.

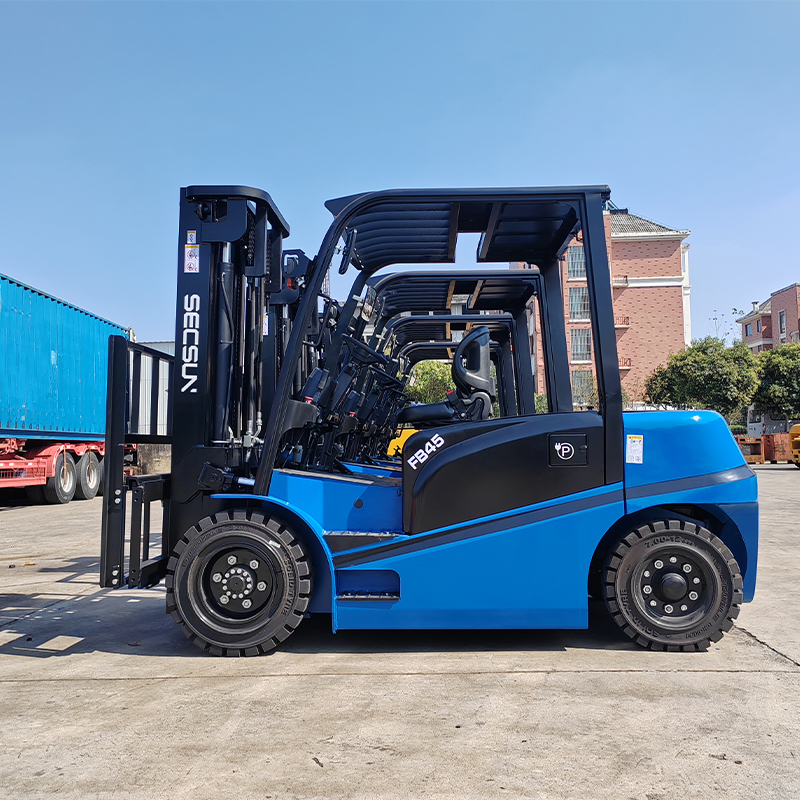

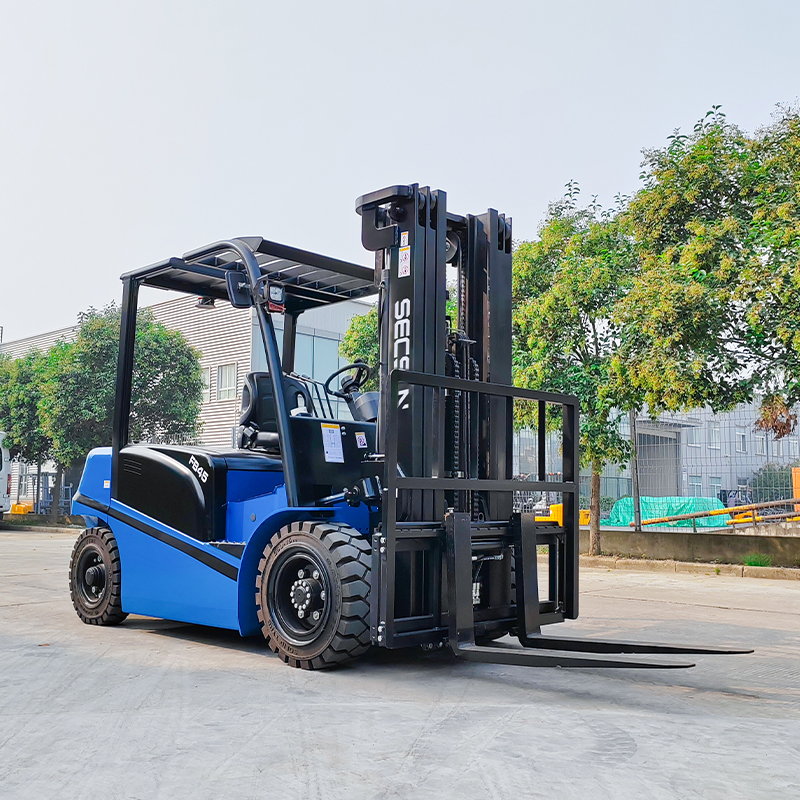

| Model | FB45 | |
| Rated Capacity | kg | 4500 |
| Load Center Distance | mm | 500 |
| Power Type | Lithium Battery | |
| Wheel Base | mm | 1800 |
| Wheel Number(Front/Rear) | 2×/2 | |
| Tyre(Front) | 250-15-12PR | |
| Tyre(Rear) | 18X7-8-16PR | |
| Mast Tilting Angle,Front/Rear | 45455 | |
| Free Lifting Height | mm | 150 |
| Max.Lifting Height | mm | 3000 |
| Max.Height After Lifting | mm | 4272 |
| Overall Guard Height | mm | 2092 |
| Fork Size:Length X Width X Thickness | mm | 1070×125×50 |
| Overall Length(Fork Excluded) | mm | 2690 |
| Overall Width | mm | 1420 |
| Turning Radjus | mm | 2550 |
| Lateral Fork Adjustment Max./Min | mm | 1300/250 |
| Self Weight | Kg | 5440 |
| Battery Voltage /Capacity | V/Ah | 80/460 |
| Battery Weight | Kg | 1170 |
| Driving Motor Power-60 Minutes | Kw | 16.6 |
| Lifting Motor Power(S315%) | Kw | 13.5 |
| Driving Motor Control Mode | Full AC | |
| Lifting Motor Control Mode | Full AC | |
| Service Brake/Parking Brake | Hydraulic /Mechanical |
Warranty Term
1. One year or 2000 working hours which occurs first.
2. 24 hours On-line service
